All our professional hawo InkTest systems (hawo InkTest) of the PRO series are dye penetration tests for the routine testing of seal seam integrity based on method A (according to EN ISO 11607-1/ following ASTM F1929-15), also known as 4-side test.

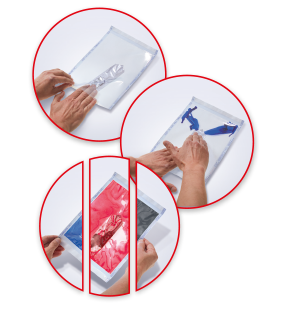

To use the InkTest PRO simply insert one disposable cartridge into the pouch to be tested, seal it and push it open. The 2 ml test liquid is spread evenly over all four sealing seams. This means that the integrity of the packaging can be inspected completely and in a single step.
Any irregularities that may occur (e.g. channels) become visible immediately after squeezing on the disposable cartridge. No further auxiliary equipment such as pipettes is required for the tests. In addition, there is no risk of the test liquid dripping or spilling onto other objects at your workplace or onto your clothing and skin.
Our PRO series test systems are supplied in a specially designed packaging unit (PU = 30 bags of 2 ml), and the aluminum packaging of the disposable cartridges itself ensures that the test solution is protected against sunlight.
Fast, safe and easy to use

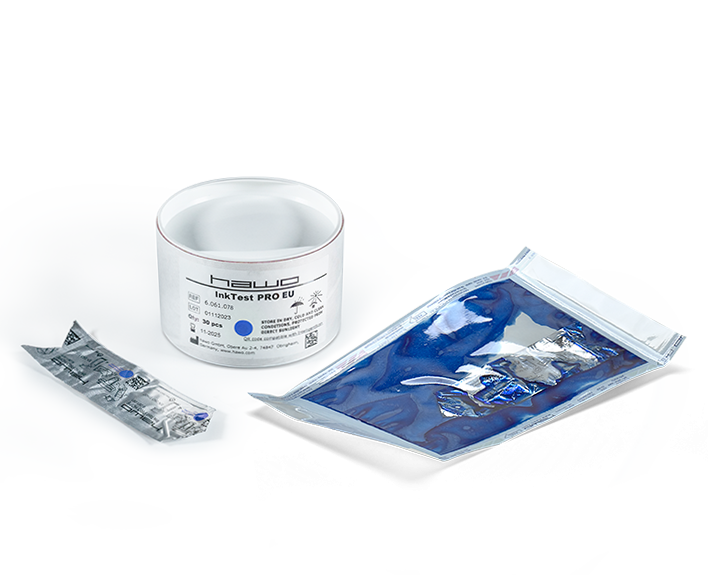

hawo InkTest PRO EU (blue)
Our hawo InkTest PRO EU offers you a classic, Triton X-free ink solution for the routine testing of sealed seams (in accordance with EN ISO 11607-1 / based on ASTM F1929-15).
Recommended for: Sealable bags and pouches according to EN ISO 11607-1/EN 868-5 made of film and paper according to EN 868-3.
hawo InkTest PRO HDPE (red)
The hawo InkTest PRO HDPE (TRITON X-free) has been developed especially for the routine testing of sealed seams of sealable bags and pouches made of film and uncoated polyolefin materials in accordance with EN 868-9.
Recommended for: Uncoated polyolefin materials according to EN 868-9 e.g. Tyvek® (Tyvek® is a registered trademark of E.I. du Pont Nemours).
hawo InkTest PRO plus (black)
Our hawo InkTest PRO Plus (Triton X free) is ideal for testing sealable bags and pouches made of PP non-woven or PP nonwoven in accordance with ISO 11607-1/EN 868-5.
Recommended for: PP non-woven or PP nonwoven, e.g. ULTRA.
Reference map for the interpretation of hawo InkTest PRO EU results.Download
